CFD400 is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to hotspots for better data transmission. Buy RF Cable; N Female to RP-SMA Male-CFD400-Black-3m.
Description
CFD400 is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to hotspots for better data transmission. Buy RF Cable; N Female to RP-SMA Male-CFD400-Black-3m.
RF Cable; N Female to RP-SMA Male-CFD400-Black Features
- Perfect connector match with high-performance antennas and hotspots
- Low insertion loss:Â Typical 0.45db @ 900MHz
- Low VSWR:Â Typical 1.1 @ 900MHz
- Robust construction for outdoor usage:Â Tinned copper wire for braid material, significantly reduces the interruption.
RF Cable; N Female to RP-SMA Male-CFD400 Specifications
|
Frequency Range |
0-6000MHz |
|
Length |
3 meter ±40mm |
|
Impedance |
50Ω |
|
VSWR |
Typical 1.1 @ 900MHz ≤1.5 max @ 6GHz |
|
Insertion Loss |
Typical 0.9db @ 900MHz ≤2.5dB max @ 6GHz |
|
Capacitance |
76pF/m |
|
Velocity of Propagation |
85% |
|
Connectors |
Type N Male/Jack Type RP SMA Male |
|
Insulation Resistance |
> 1,000 MΩ |
|
Bend Radius |
Min 25.4mm |
|
Voltage Breakdown |
 2.5KV |
|
External Cable Diameter |
10.3mm |
|
Connectors |
Type N Female Type RP-SMA Male |
|
Mating Cycles |
> 500 |
|
Jacket Material |
PE |
|
Conductor Material |
Copper |
|
Binder Material |
Aluminum/PE Tape |
|
Braid Material |
Tinned copper wire |
|
Operation Temperature |
-30°C to +65°C |
|
Environmental |
RoHS |
VSWR

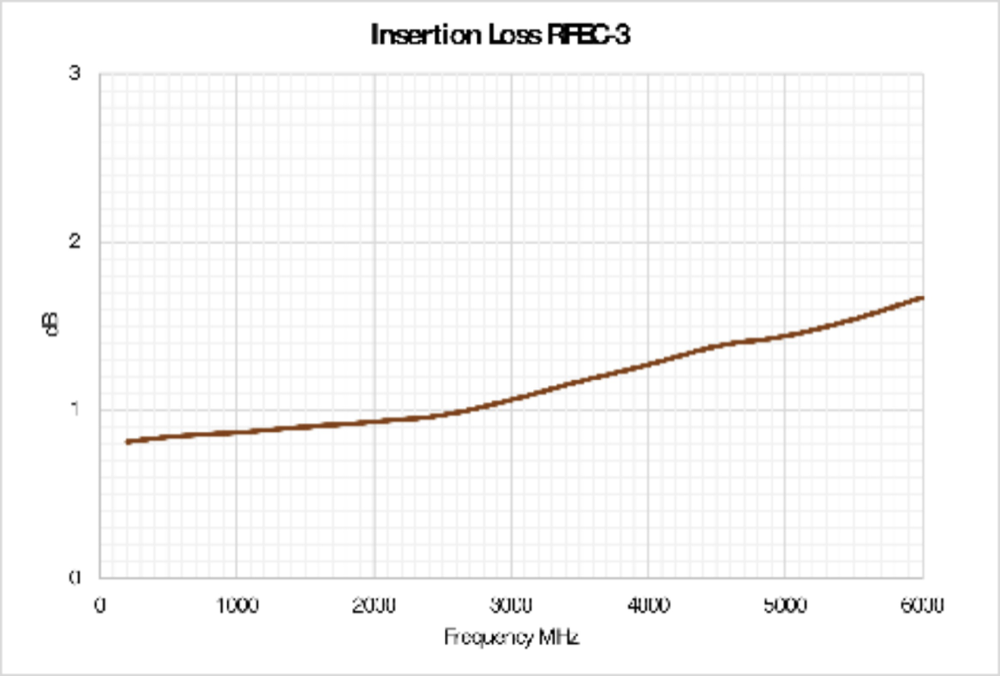

Insertion Loss
Mechanical Specification
Packaging
1 x RF Cable; N Female to RP-SMA Male-CFD400-Black-3m
Documentations
Additional information
| Weight | 0.7 g |
|---|---|
| Dimensions | 27 × 18 × 6 m |
| Lenght | 1.5m, 2m, 3m, 5m, 10m |
