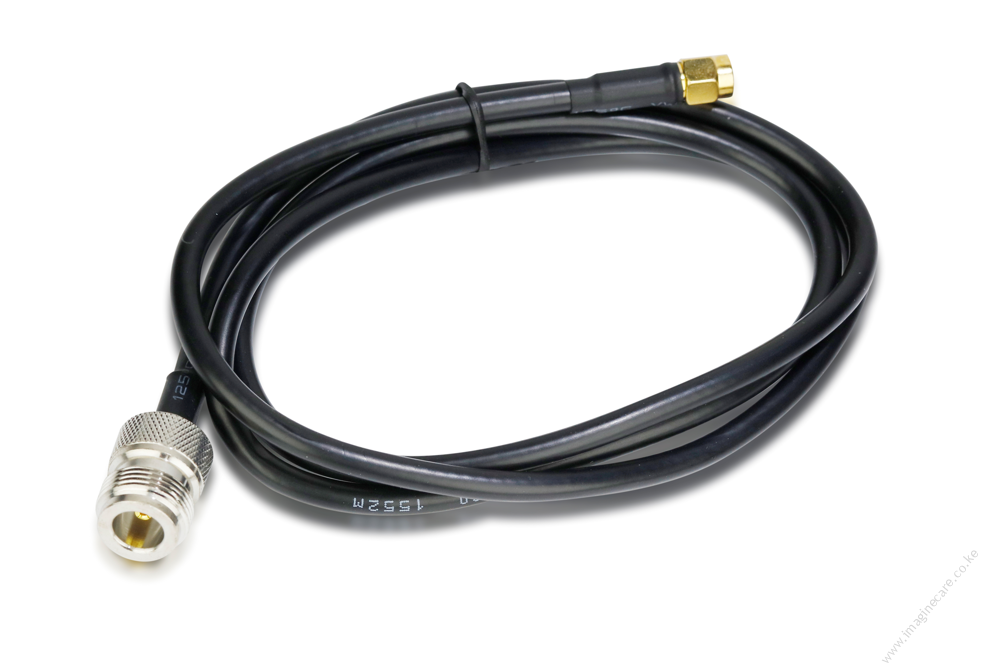

N Female to RP-SMA Male Cable – CFD200 Black is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to hotspots for better data transmission.
Description
N Female to RP-SMA Male Cable – CFD200 Black is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to hotspots for better data transmission.
When setting up a LoRa Network the positioning of the Gateway strongly influences the coverage. Antennas can be used to further improve the coverage provided by a single gateway.
The N-type to SMARS Connector is a cable to connect your LoRa Gateway to an antenna. Its length gives you the flexibility to optimize your system and achieve the best coverage with your hardware. It is also waterproof and can withstand harsh outdoor environments.
N Female to RP-SMA Male Cable – CFD200 Black Features
- Perfect connector match with high-performance antennas and hotspots
- Robust construction for outdoor usage: Tinned copper wire for braid material, significantly reduces the interruption.
- Cable to connect Antenna to Gateway
- Gold-coated connecting needles
- Length: 1m
- Waterproof
- Can be used with LoRa Gateway
- Gold-plated brass surface
- CFD200, CFD400, and LMR200 cables have the same functionality and quality
N Female to RP-SMA Male Cable – CFD200 Black Applications
The Cable can be applied in all scenarios which require an Antenna like:
- Remote Sensing
- Extend Coverage for Helium mining
N Female to RP-SMA Male Cable – CFD200 Black Specifications
Electric Characteristics |
|
Frequency |
DC~ 6 GHz |
Impedance |
50 Ohm |
S.W.R. |
<= 2.0 |
Insertion Loss |
<= 1.5 dB @ 3 GHz |
Voltage (breakdown) |
> 500V |
Insulation Resistance |
>= 15 M ohm |
Center Conductor Contact Resistance |
<= 60 m ohm |
Outer Conductor Contact Resistance |
<= 25 m ohm |
Material & Mechanical Characteristics |
|
Material of Conductor Brass (Cu) Pull Test of N Connector |
>= 5 Kg |
Pull Test of SMA Connector |
>= 3 Kg |
Mating Cycles |
> 500 |
Environmental |
|
Operation Temperature |
-40˚C~+65˚C |
Storage Temperature |
-40˚C~+80˚C |
Technical Details
N Female to RP-SMA Male Cable – CFD200 Black Mechanical Specification
Packaging
1 x N Female to RP-SMA Male Cable – CFD200 Black – 1m
Documentations
Additional information
Weight | 0.7 g |
---|---|
Dimensions | 27 × 18 × 6 m |
Lenght | 1.5m, 2m, 3m, 5m, 10m |
